Product Description

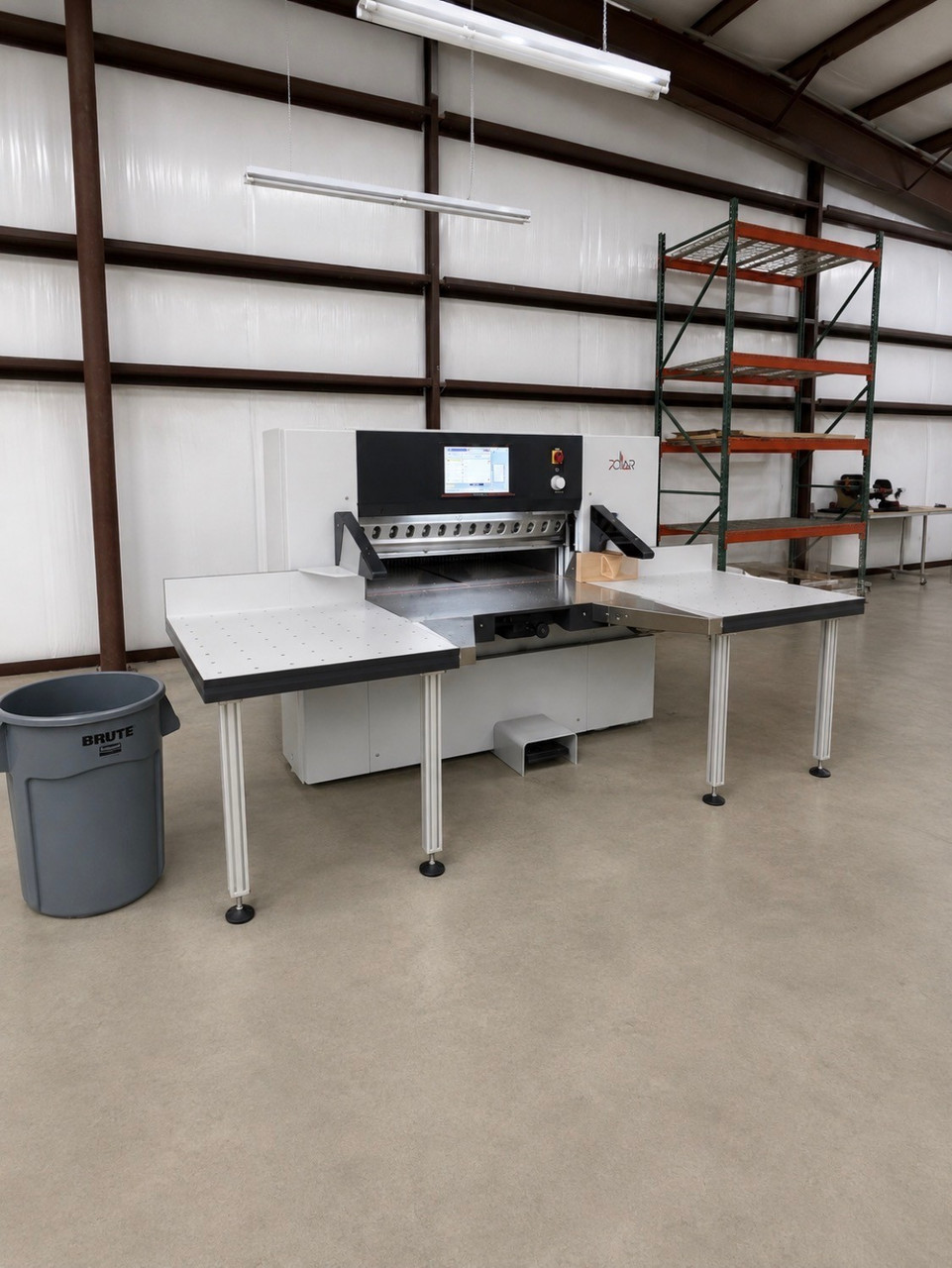

We are pleased to present this lightly used 2019 Polar 137 N Plus paper cutter with only 3,000 cut count. Machine is in like new condition. Under power can be tested.
The basis for all highly-automated PACE systems.
POLAR N 137.
POLAR high-speed cutter N 137 marks the entry level to the cutting of medium-size formats, such as III-b print products. Formats up to a diagonal of 1,370 mm can be conveniently turned on the high-speed cutter. When dealing with larger sizes the material being cut can only be turned on the front table.
By adding a gripper loading system, the high-speed cutter can be complemented to form a central component in a PACE system.
High-speed cutter N 137 PLUS
The allrounder with 18.5“ color display and touch-screen operation. Suitable for all standard cutting jobs. Featuring automatic graphic programming to ensure a highly-automated process. Examples of equipment: Graphic operator guidance, with various language packages. Change-over measurement system (metric, inch or shaku). Configurable user interface, OptiKnife knife changing system and many other features.
High-speed cutter N 137 PRO HD
The programmable high performance model with a capacitive 21.5'' Touch-Screen display and real image preview for high-end applications thanks to job specific programmable parameter, label and distortion correction as well as an extended range of options.
High-speed cutter N 137 AT HD
Our model N 137 AT HD is the most-efficient model of this type of high-speed cutter featuring automatic waste disposal during the cutting process.
Customer benefits
- Extended operating life of the knife as well as faster knife change thanks to POLAR OptiKnife with knife fine adjustment in the lower dead end
- High productivity by a great number of programmable additional functions
- Shortest make ready times thanks to intuitive cutting program generation via block programming or even Compucut
- Greatest cutting accuracy due to the POLAR Positioning-System DPS with a mechanical positioning accuracy of 1/100 mm
- Highly reliable in daily use and long lifespan as a result of the stability of the one-piece machine frame, knife drive with worm gear drive and compact closed hydraulic system
Technical data
| Cutting width | 1,370 mm (53.94 in) |
| Feeding depth | 1,450 mm (57.09 in) |
| Loading height max. | 165 mm (6.50 in) |
| Safety clamp pressure | 30 daN (66 lbs) |
| Clamp pressure, min. | 150 daN (331 lbs) |
| Clamp pressure, max. | 5,500 daN (12,125 lbs) |
| Backgauge speed on return way (0 - ...) | 300 mm/sec (11.81 in/sec) |
| Knife speed | 45 cycles/min |
| Smallest cut, automatically, without false plate | 25 mm (0.98 in) |
| Smallest cut, automatically, with false plate |
95 mm (3.74 in) |
