Product Description

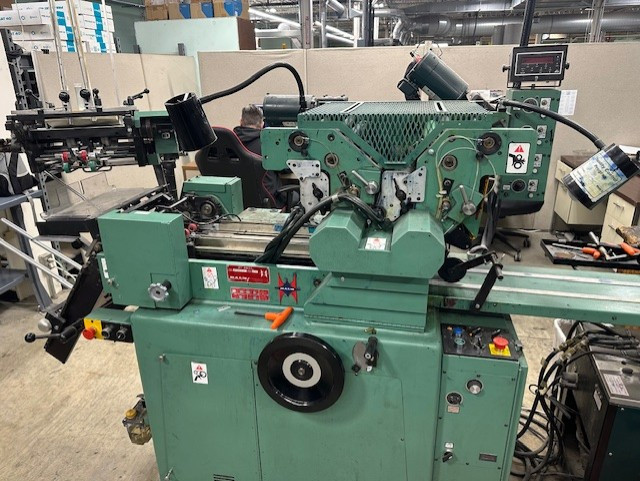

2000 Halm JP-TWOD-P-D Super Jet
Pre-owned press under power, can be seen running. . Prints 1/1 or 2/0
Always under service contract condition is Excellent. In plant government facility print shop
The Halm Jet Press is a two-color perfector that offers you the capability of printing two colors, two sides simultaneously in one pass through the press at speeds up to 30,000 envelopes per hour. The machine can print two colors on one side at speeds up to 60,000 envelopes per hour.
Accurate registration is maintained regardless of press speed by printing from a common blanket cylinder.
Specifications:
- Model: JP-TWOD-P-D Super Jet
- Electrical:
- 220 Volts
- 3 Phase
- 60 Hz
- Sheet Size:
- Top Feeder:
- 9" x 12 3/4" (230mm x 325mm) Maximum
- 3 1/4" x 4 1/4" (82mm x 108mm) Minimum
- Bottom Feeder:
- 18" x 12 3/4" (460mm x 325mm) Maximum
- 3 1/4" x 4 1/4" ( 82mm x 325mm) Minimum
- Top Feeder:
- Printing Area:
- 9" x 12" (230mm x 305mm) Maximum
- 3 1/4" x 4 1/4" (82mm x 325mm) Minimum
- Perfecting Area: Four sided bleed, both sides, up to and including: 4 1/4" x 12" (108mm x 305mm)
- Speeds:
Minimum size 3 1/4" x 4 1/4" (82mm x 108mm) up to 4 1/2" x 12 3/4" (114mm x 325mm)- One side only: 30,000 eph (1 UP), 60,000 eph (2 UP)
- Perfecting: 30,000 eph (1 UP) -------- eph (2 UP)
Up to 9" x 12 3/4" (230mm x 325mm) - One side only: 30,000 eph (1 UP) ------ eph (2 UP)
- Plate Size: 9 15/16" x 12 1/4" x .008" (251mm x 311mm x 0.2mm)
- Blanket Specifications: .0375" (0.94mm) thickness including adhesive back
- Machine Dimensions:
- Length: 5' (1,828mm)
- Width: 2' 10 3/4" (885mm)
- Height: 5' 3 1/2" (1620mm)
- Weight: 1,590 lbs. (816 kg)
- Delivery Table:
- Length: 6' (1829mm)
- Width: 12" (305mm)
- Weight: 140 lbs. (64 kg)
- Plate Cylinder Movement:
- Circumferential: 360°
- Lateral: ± 1/8" (3mm)
- Plate Skewing Capacity: ± 0.21°
