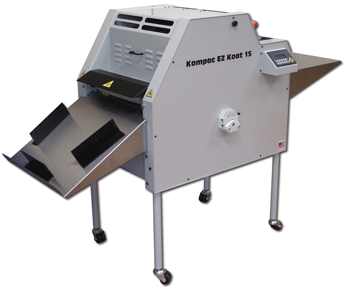

The Kompac EZ Koat 15 is a small footprint, UV & Aqueous coater capable of coating a sheet size of 14.5” wide by virtually any length.  Whether digital output or offset, each job will have the visual appeal, lasting durability, protection and rub resistant finish that your customers expect!

Proudly made in the USA, the Kompac EZ Koat is the only UV coating system to feature Solid State UV!  Environmentally friendly, solid state UV replaces outdated & potentially hazardous ballast / mercury relay systems used in curing UV coatings.

Features Include:

• Easy to set up & operate
• Apply UV, aqueous, specialty coatings & primers
• Less than 5 minute coating change & clean up with the “patented” Kompac Vac
• Digital control panel
• “Patent Pending” rotating UV reflector technology prevents over curing when the coating process is interrupted
• Variable speed & UV intensity
• “Patented” Kompac coating unit
• Dedicated coating support
• One stop shopping for coating & supplies

• “Patented” Kompac coating unit provides on-the-fly coating control & adjustment
• No waste...contains only 2 ounces of coating in the nip
• EZ to clean and change coatings - With the patented "Kompac Vac" and our environmentally friendly UV Klean, coating change and clean up takes 5 minutes
• Produces the highest gloss and a perfect finish every time
• Durable, long life, high precision rollers
• Optional Coating sensor automatically detects coating level & replenishes as needed
• Eliminates the need for recirculation

Sheet Size: 14.5" width, virtually any length368mm width, virtually any length
UV Lamp: Solid State - infinitely variable UVSolid State - infinitely variable UV
Speed: Up to 80 feet per minute Up to 24 meters per minute
Stock Weight: 7pt. to 30pt. 150g/m² to 600g/m²
Controls: Adjustable speed & UV intensityAdjustable speed & UV intensity
Weight: 400lbs.181kgs.
Dimensions: 74"L x 29"W x 50"H 1.9m x .74m x 1.27m
Electrical: 208-230/1Φ/50-60Hz/25 amps208-230/1Φ/50-60Hz/25 amps
